Probability Tree Diagram

Updated 01 Oct 2026

•
What it is
- •

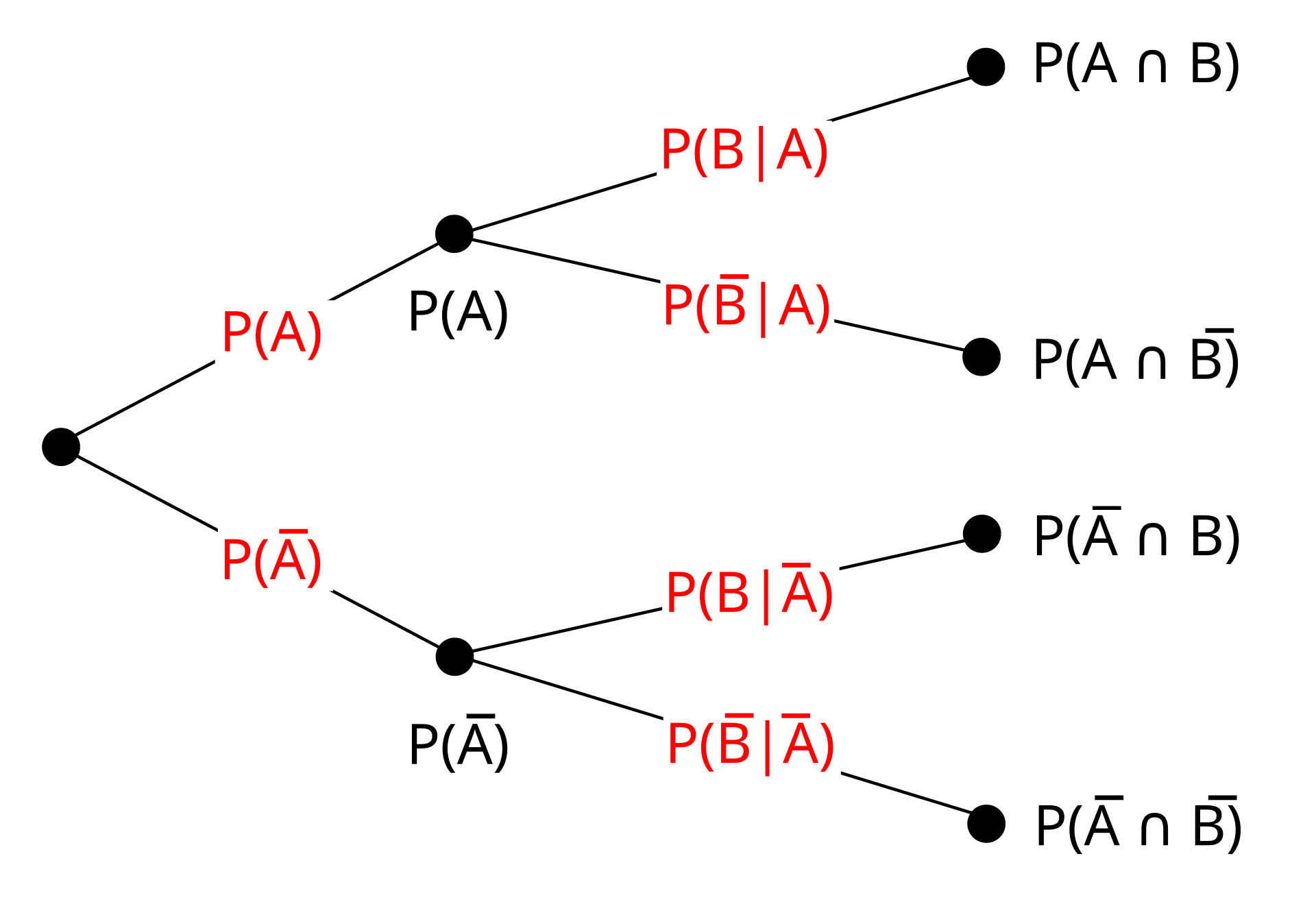

  represents sequential outcomes using branches labeled with conditional probabilites
- •
•
Rules
- •
  outgoing branch probabilities at each reachable node sum to $1$
- •
  multiply along a path to obtain its joint probability
- •
  add probabilities of mutually exclusive terminal paths to obrain an event probability
•
Example
- •
  Draw twice from $3$ red and $7$ blue objects.
- •
  With replacement: $P(RR)=0.09$ , $P(RB)=0.21$ , $P(BR)=0.21$ , $P(BB)=0.49$ .
- •
  Without replacement: $P(RR)=1/15$ , $P(RB)=7/30$ , $P(BR)=7/30$ , $P(BB)=7/15$ .
- •
  Thus, without replacement, $P(\text{different colors})=7/15$ .
