  Spatial filters and edges

  • •

    Convolution -> combines a pixel neighborhood using kernel weights.

    • •



    • •

      generally, kernel dimensions is odd x odd. there's a 2x2 kernel for edge detection / more complex stuff

    • •

      Types

      • •

        ignoring outer element of the matrix (only valid ones)

      • •

        Same -> add 1 zero padding, convolute the vlaid ones

      • •

        Full -> add 2 zero paddings, convolute the valid ones

    • •

      Frequency types

      • •

        low freq -> part of img where pixels in img have similarity with neighboring pixels

      • •

        high freq -> part of img where img have low similarity with its neighboring pixels

  • •

    Padding -> supplies values beyond the image boundary.

    • •

      common choices: zero, reflection, replication.

    • •

      padding choice changes boundary behavior.

  • •

    Mean / Gaussian filters -> smooth noise; may blur edges.

  • •

    Median filter -> useful for salt-and-pepper noise.

  • •

    Sharpening -> emphasizes local differences.

  • •

    Sobel -> estimates directional gradients.

  • •

    Canny -> smooths -> detects gradients -> suppresses non-maxima -> links thresholded edges.

    • •

      an edge response is not automatically an object boundary.

  • •

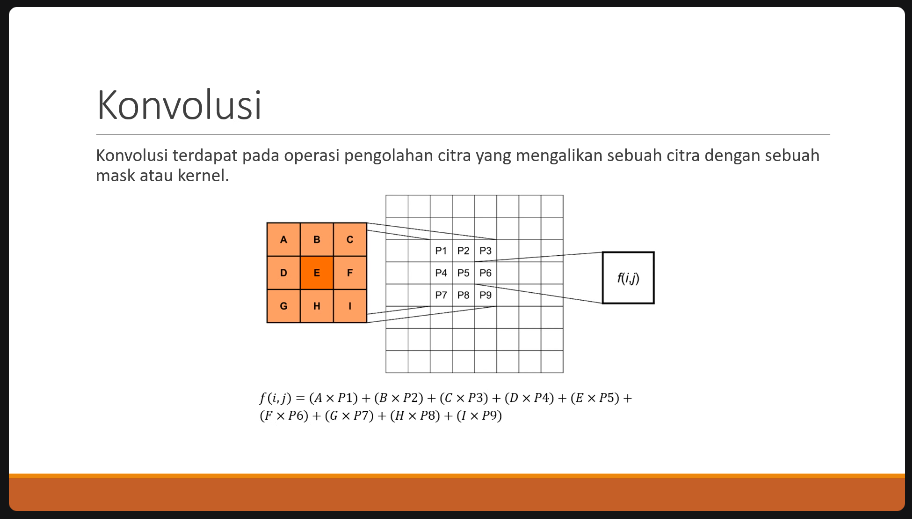

    convolution illustration: slide a small kernel over a pixel neighborhood and show the weighted-sum output; include Sobel edge response if space permits.

• •

  Frequency domain

  • •

    DFT -> represents an image as spatial frequencies.

  • •

    Low frequencies -> slowly changing image structure.

  • •

    High frequencies -> fine detail and rapid changes.

  • •

    Centered magnitude spectrum -> shows frequency strength.

  • •

    Frequency masks -> apply a mask, then invert the transform.

  • •

    Low-pass -> removes high frequencies.

    • •

      for smoothing, reducing noise (?)

    • •

      $\sum_i \sum_j g(i, j)= 1$, where $g(i, j) > 0$

    • •

      e.g. $g = \begin{pmatrix} \frac{1}{9}&\frac{1}{9}&\frac{1}{9} \\ \frac{1}{9}&\frac{1}{9}& \frac{1}{9} \\ \frac{1}{9}& \frac{1}{9} &\frac{1}{9} \end{pmatrix}$

  • •

    High-pass -> removes low frequencies.

    • •

      untuk something idk

    • •

      $\sum_i \sum_j g(i, j) = 0$, $g(i, j) \in \mathbb{R}$ (?)

    • •

      e.g.: $g = \begin{pmatrix} 0 &{-1}& 0 \\ {-1}& 4 &{-1} \\ 0& {-1}& 0 \end{pmatrix}$

  • •

    Band-pass -> retains a selected range.

    • •

      meloloskan data di frekuensi tertentu

    • •

      unutk penajaman bagian tepi objek (?)

    • •

      $\sum_i \sum_j g(i, j) \neq 0$ , $g(i, j) \in \mathbb{R}$ (?)

    • •

      e.g.: $g = \begin{pmatrix} 0 &{-1}& 0 \\ {-1}& 5 &{-1} \\ 0& {-1}& 0 \end{pmatrix}$

  • •

    false color terjadi pada hiseq saja. filtering tiddak harus intensitas saja kaya hiseq

  • •

    Notch filter -> targets selected frequency peaks.

  • •

    Periodic interference -> often appears as paired off-center peaks.

  • •

    Sharp frequency cutoff -> can cause ringing.

  • •

    centered spectrum illustration: label low/high frequencies, paired periodic-noise peaks, and low-pass/high-pass/notch masks.
